- Tool for creating diagrams using reverse engineering technology
- for Software Developers working on backend & large repositories
- create your visual software architecture documentation according to the C4 model in just a few minutes
- Zero data is transferred. The inno.navi runs 100% offline & without installation.
“Simply drag and drop any code base into inno.navi and the software architecture diagram is generated automatically.”
Download portable inno.navi app - v2.00:
License & Pricing:
After using 10 day free trial version, you can request an unlimited editor License.
Request product keys with this form.
5.00 € / per editor / month
New in inno.navi v2.0:
- Significant improvements when moving and customizing views with auto-grid Layout
- Significant improvements in the creation of virtual folders
- Modernized new Light & Dark Theme
- Improved Stability & Performance
You find our known issues on: sharing.clickup
Send us feedback, bug or feature requests here: Feedback Site
Send us feedback, bug or feature requests here: Feedback Site
Module view:
Open Directory, or Drag & Drop from Windows Explorer, to open: Layer 1 – Module View
green = source code files
blue = configuration files
red = script files
grey = not relevant files
green = source code files
blue = configuration files
red = script files
grey = not relevant files
Documentation:

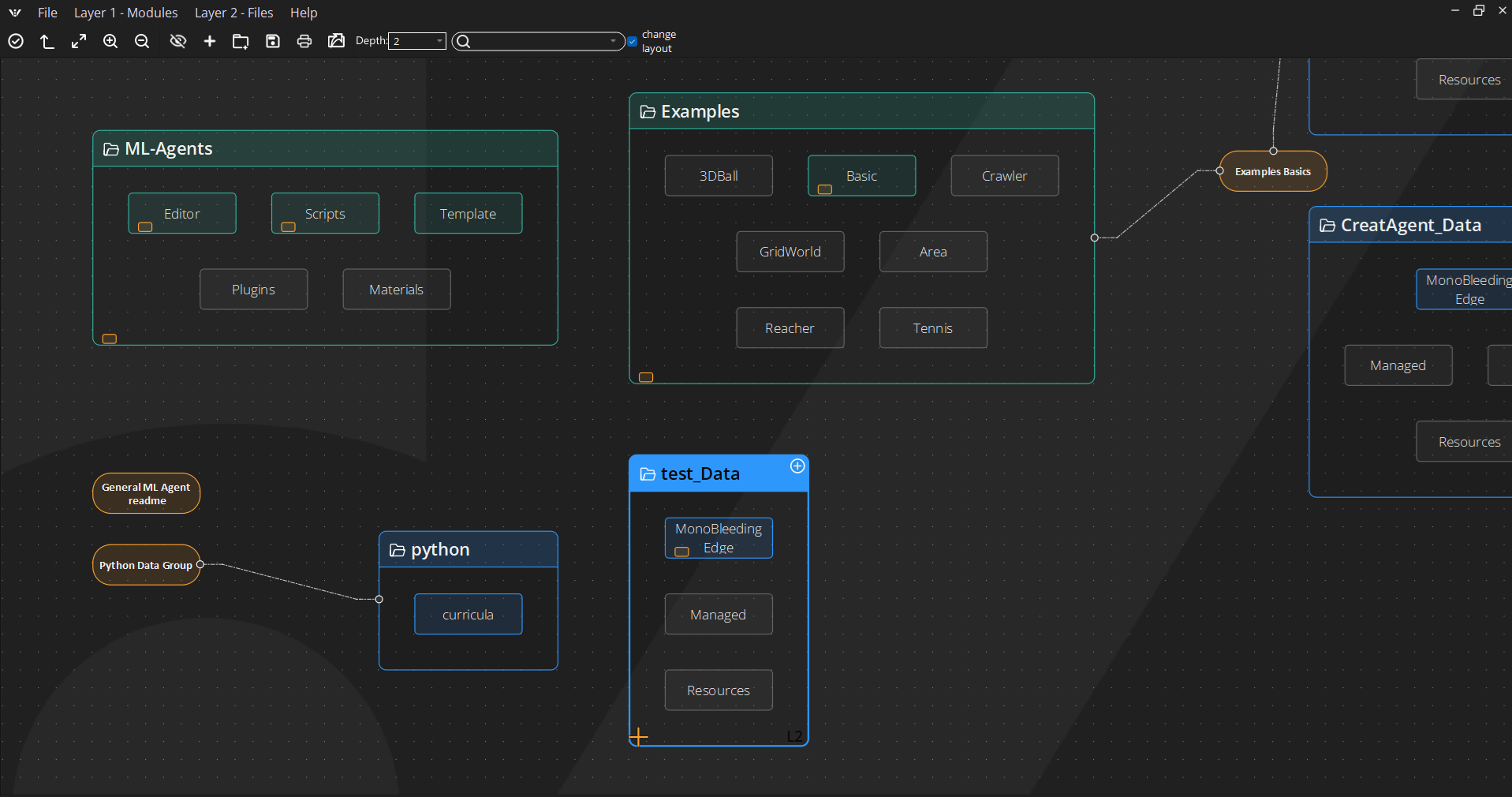

You can create the software documentation direct in the inno.navi, as shown on below screenshot.
Drag lines from “A” to “B”, and write info on it. Or create embedded notes on modules.

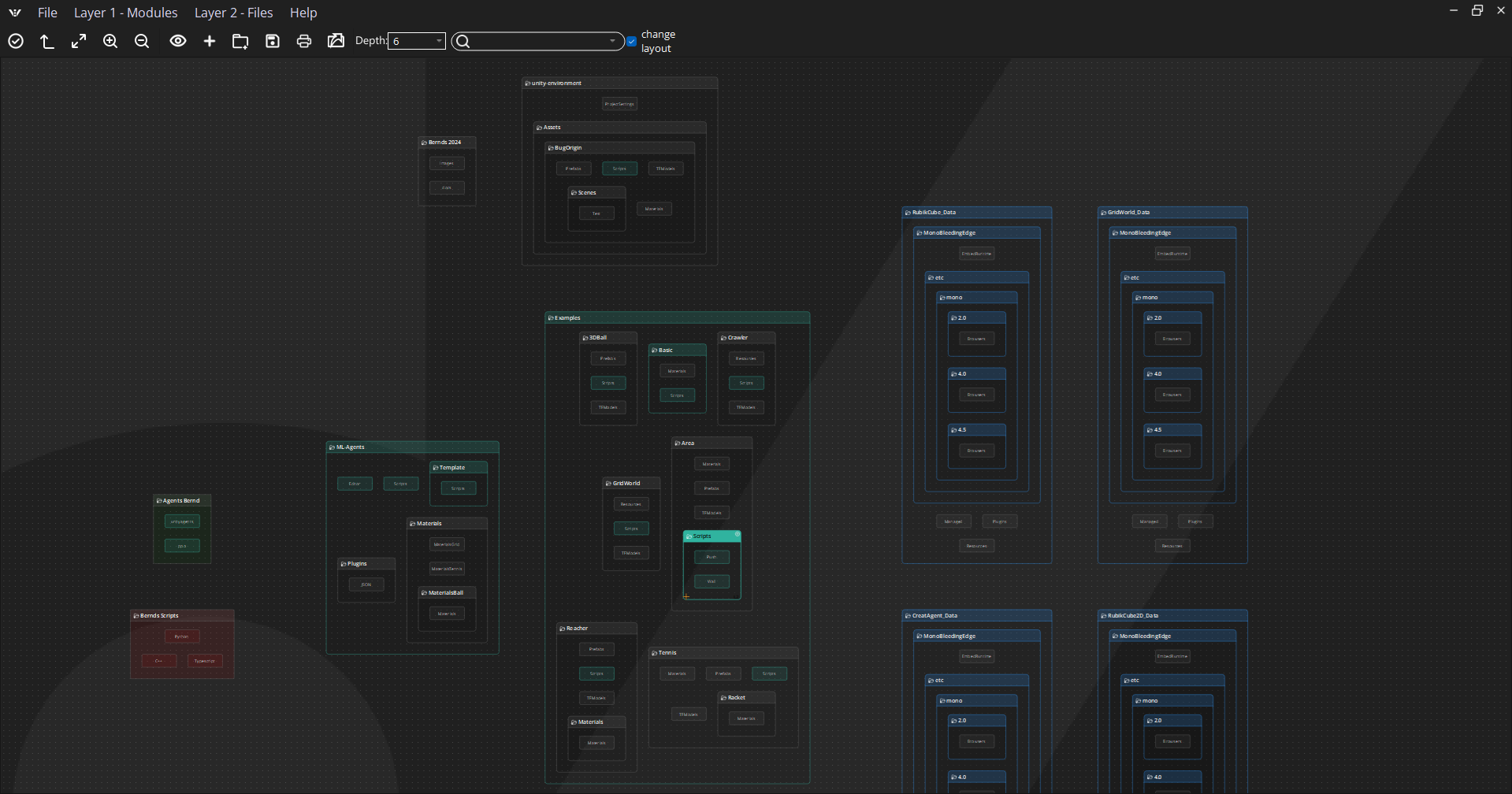

Unlimit deep Structures:
No limit to the number of levels and submodules. The complete architecture structure can be represented.

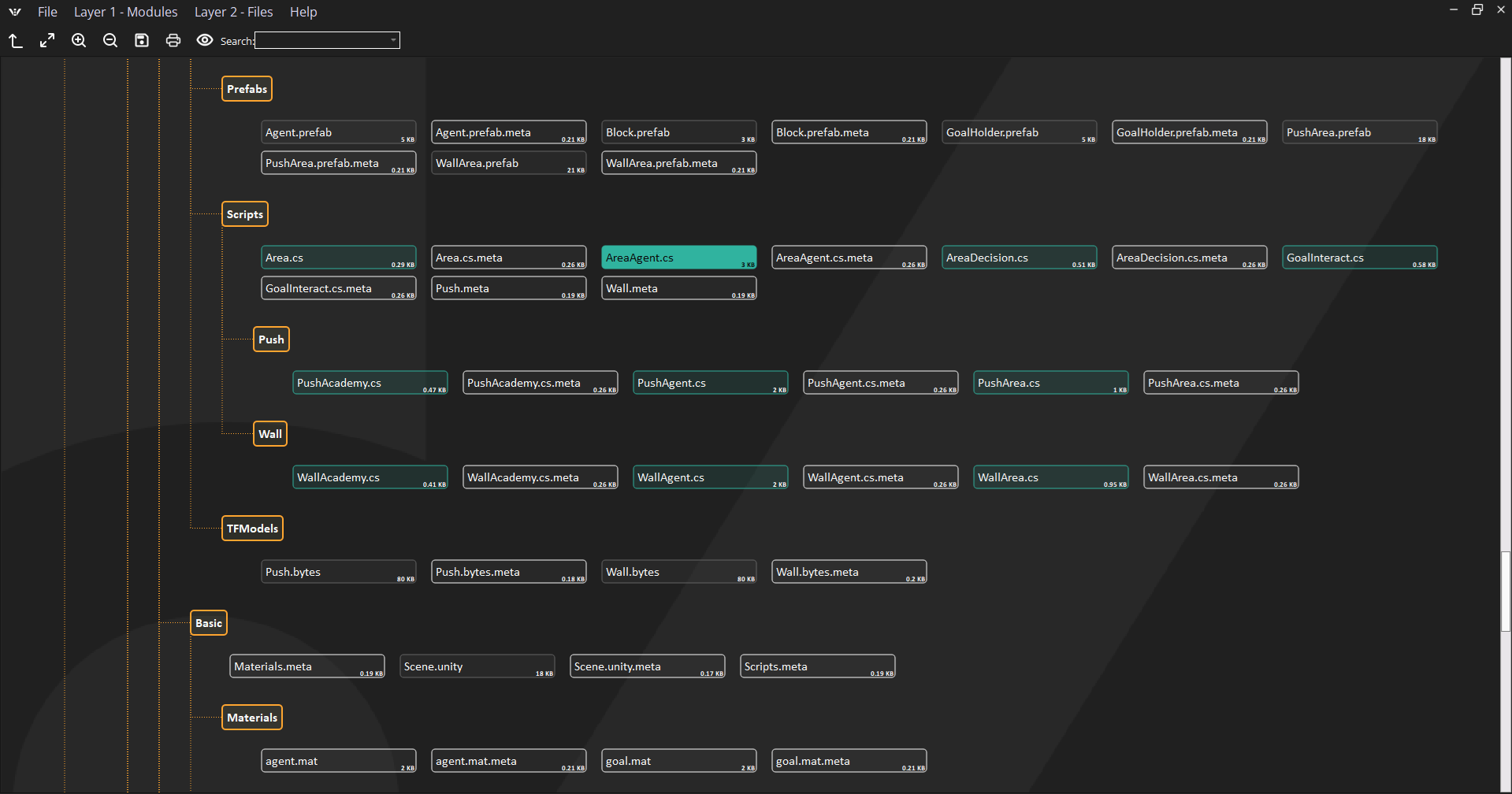

File Structure:
The file structure of the repository / file structure is mapped on Layer 2
